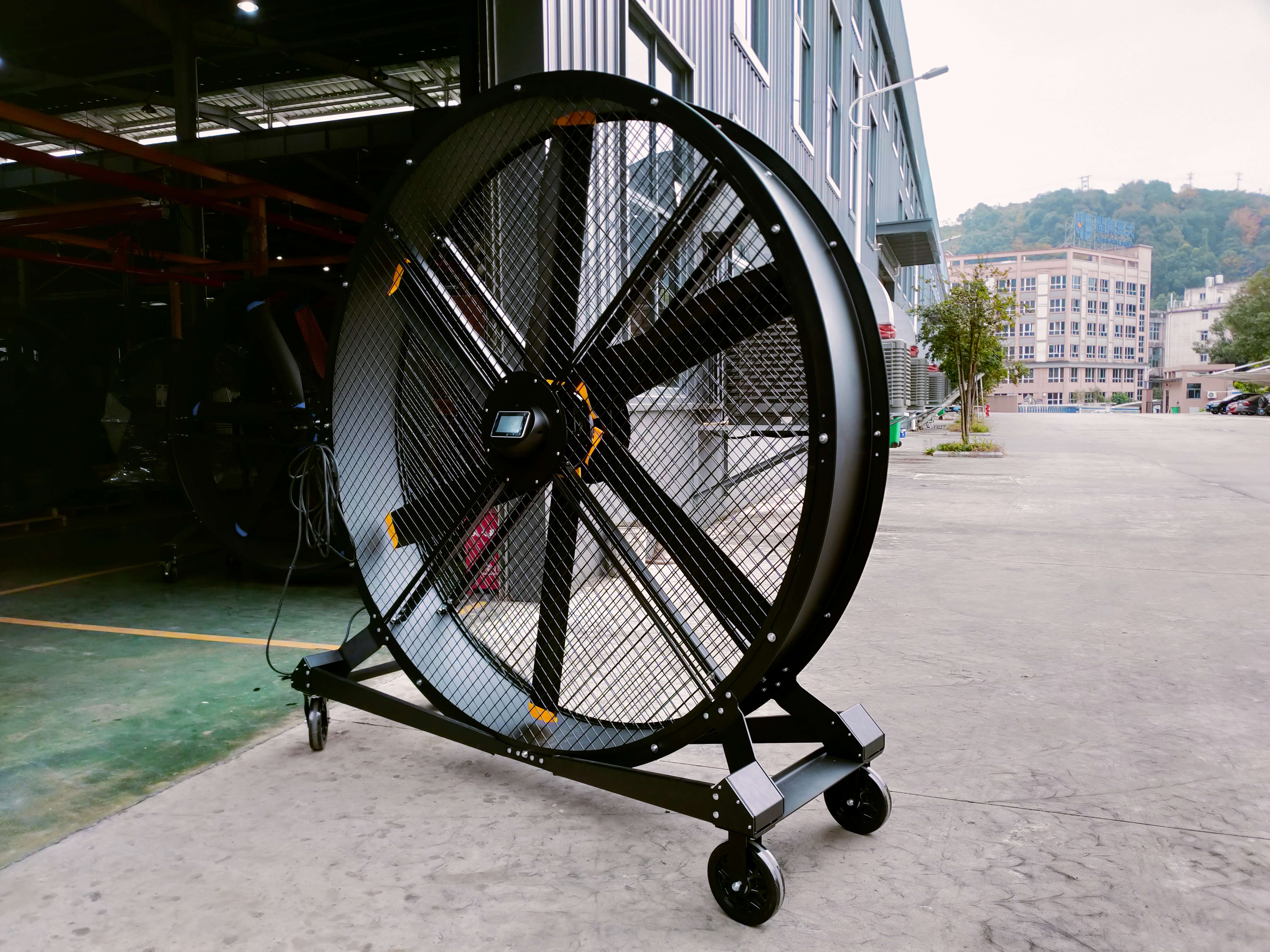

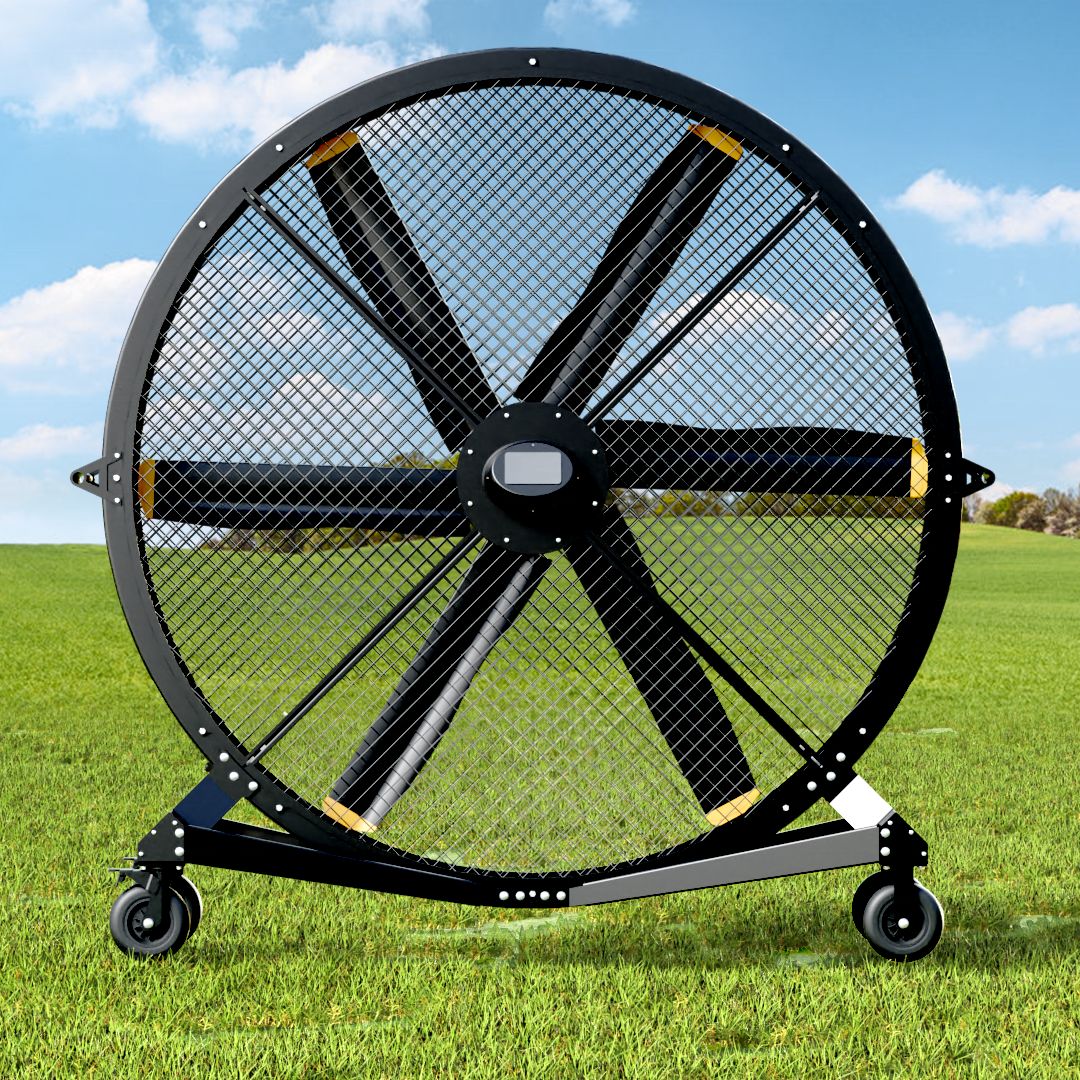

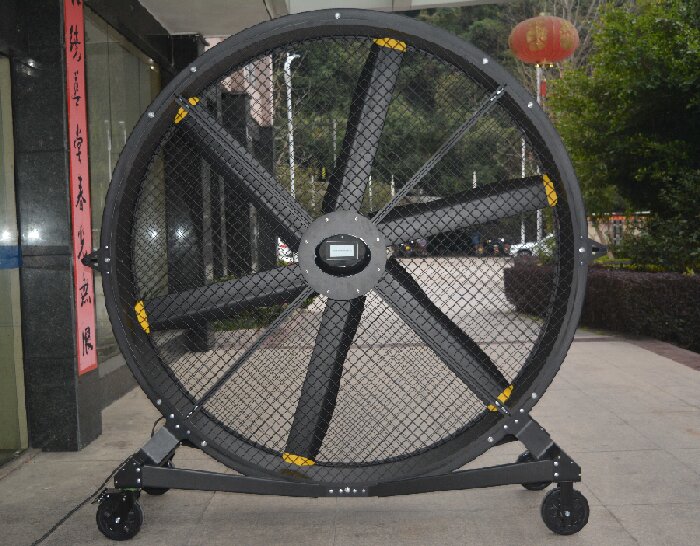

1.5 / 2m Big Sized Portable Outdoor waterproof industrial stand fan
Super large air volume, ultra-long air blowing,feel the free wind everywhere
Model |
Big movable fan |
Diameter |
1.5m ( 4.9ft) / 2 m ( 6.56ft) |
Voltage &Power |
220V/380V |
Max rotating speed |
420rpm / 300rpm |
Air volume |
55000 m3/h; 80000m3/h |
Number of blades |
6pcs Aluminum-alloy fan blade |
Noise |
39db |
Long distance |
20-40m |
Effective area |
150 square meters / 260 square meters |
Net Weight |
93kgs / 122kgs |
1.5m (4.9ft ) & 2m ( 6.5ft ) in available
Dark grey & yellow blades in availableOEM are welcome

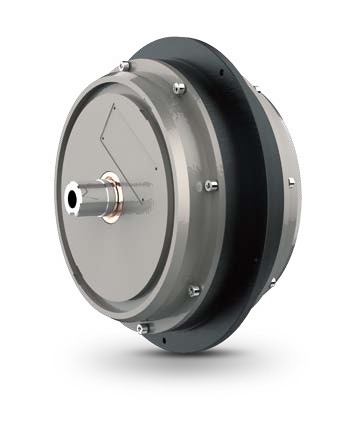

Permanent magnet synchronous motor
FEATURES:.Without rotor losses
.High efficiency and precision
.Large power factor
.Improve grid operating environment.
.Frequency modulation width (0~200HZ)
.Small size and light weight
.Saving energy and high efficient
Controller panel
1) Touch Screen.System function is simple, 4 buttons easy to operation( Run,stop,speed up, slow down)
2) Support mobile phone intelligent control

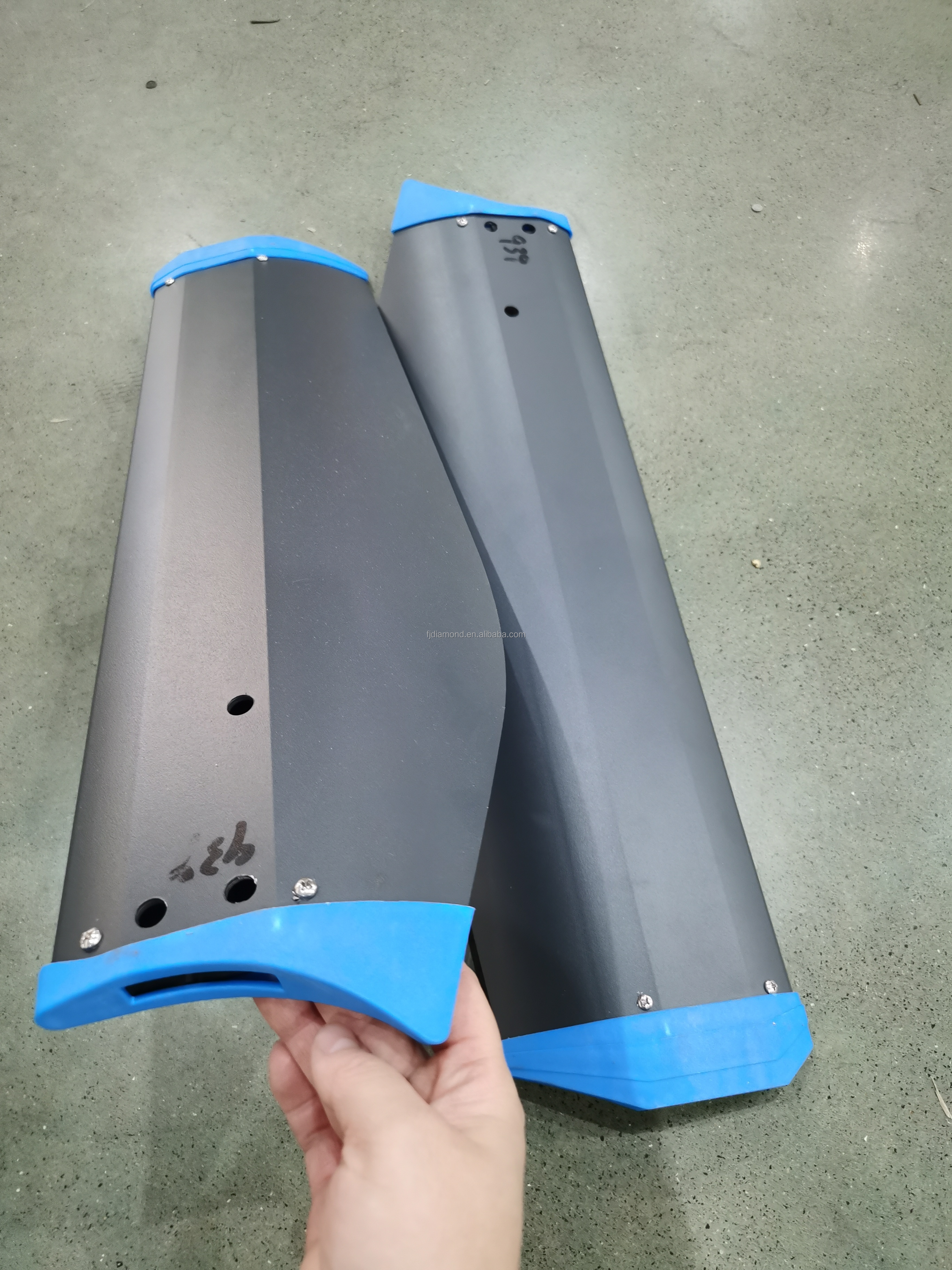

Fan blades
Blade material : aluminum and magnesium . The fan blade surface is treated with T5+ bright surface oxidation treatment,which
enhances the corrosion and oxidation resistance of the fan blade and can cope with special enviromental operations

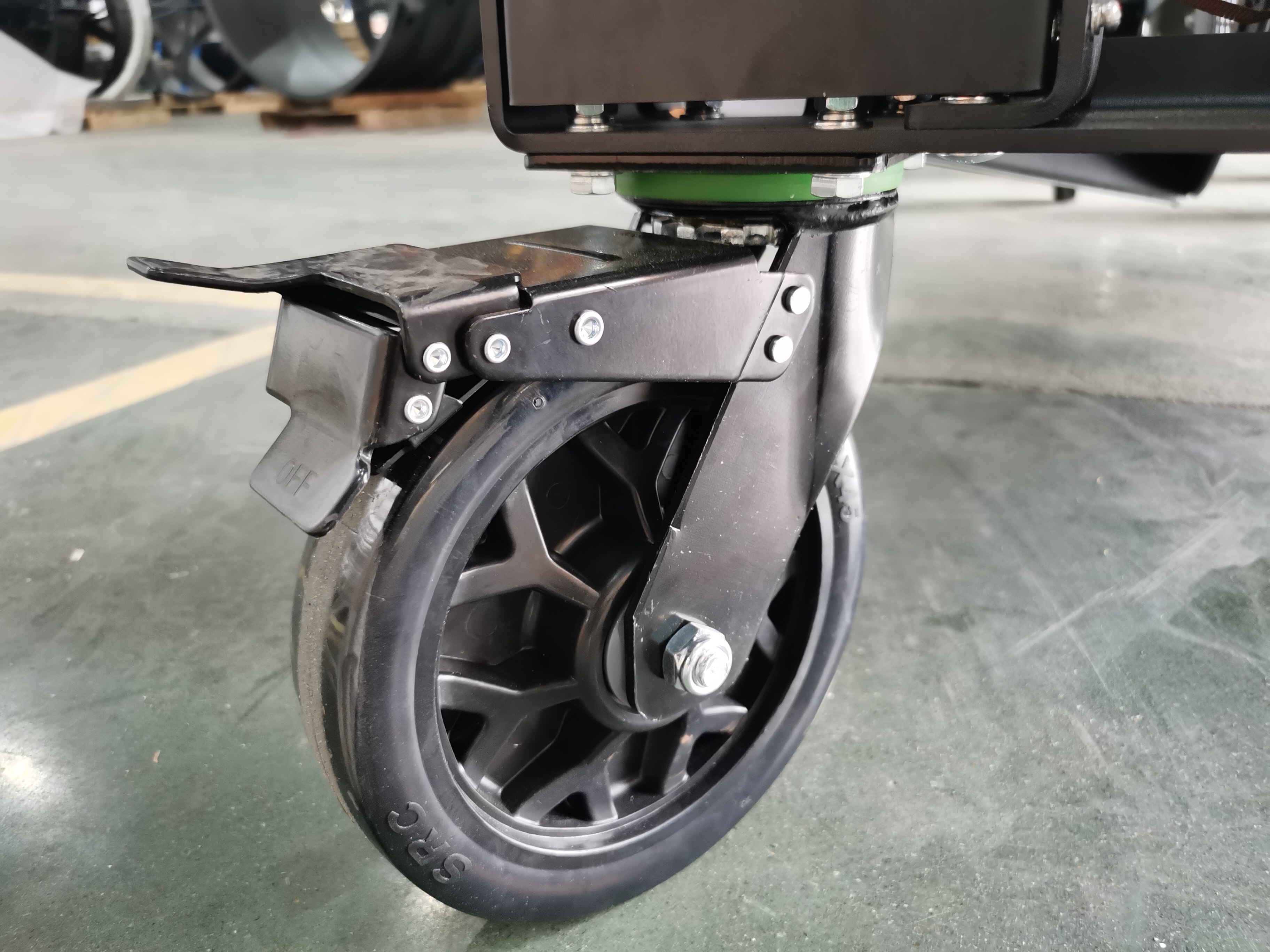

Mute wheels
* Wheels : High quality rubber material
* 2 Universal Wheels, 2 Directional Wheels
* Thickness of wheel: 55mm
Quality detail
* Compact structure
* Strong driving force
Big Sized Warehouse Portable Large Stand DC Fans Airmove series Main Features
1. Super large air volume: Ultra-long air blowing, the effective distance is more than 40m;
2. Move easily: Designed with 4 wheels, the fan is able to move everywhere easily;
3. Energy saving: With only 0.75KW power, very low energy comsuption;4. Quiet & Low noise: Low noise with only 39DB level.
5. Stepless Speed Control: PMSM motor driving fan blade, VFD stepless peed control, easy to operate;
6. Waterproof/Dustproof: Protection level is IP55, waterproof in overall.
7. Durable: All materials of appearance are treated with spray-painted , the barrel is 2mm thick, the ovrall hollowing out to
reduce weight. 8. Plug and play: No on-site installation, all factory pre-installed and commissioned avoiding cumbersome
installation and maintenance-free use.

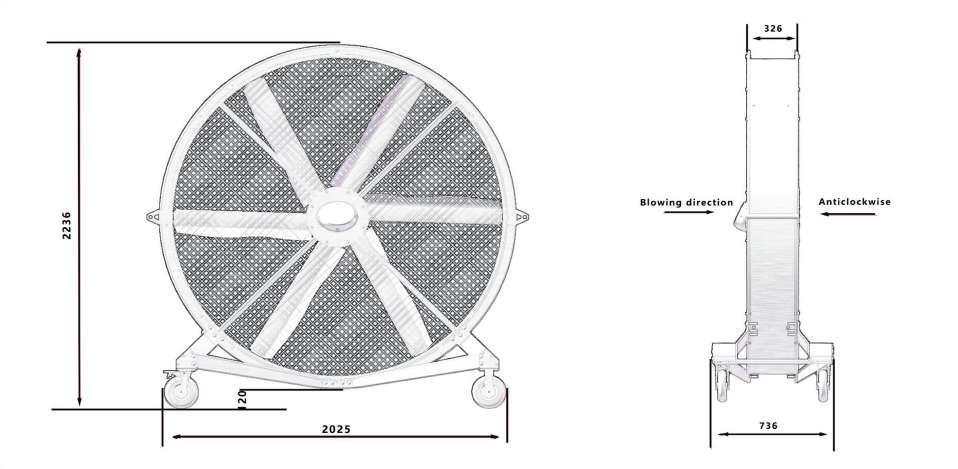

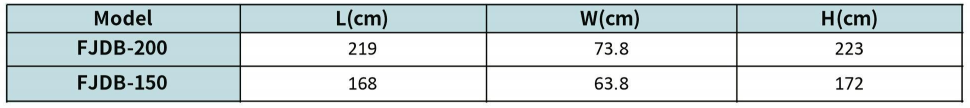

Size |
1760*1660*380mm ( 1.5m) 2260*380*2140mm (2.0m) |
Packing |
plywood case/ or by your requirements |
Gross weight |
139 kgs / 193 kgs |
Samples are welcome
Sample time : within 5 days after getting your deposit.

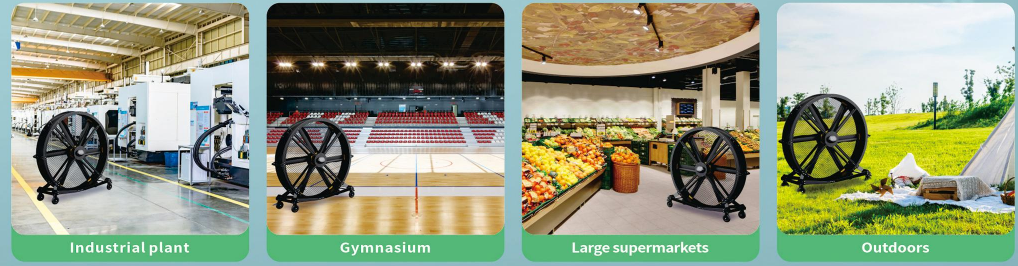

The PM VFD movable fan is widely used in fitness center ,outdoor wedding venues , industrial factory ,logistics warehousing, waiting room ,exhibition hall, physical education hall and other large space places,as a new type of ceiling fan space ventilation, personnel cooling .It can push a large amount of airflow to the ground ,forming a certain height of the moving airflow layer, thus contributing to the overall air circulation; Like the natural breeze system,enjoy the intimate experience of natural wind.

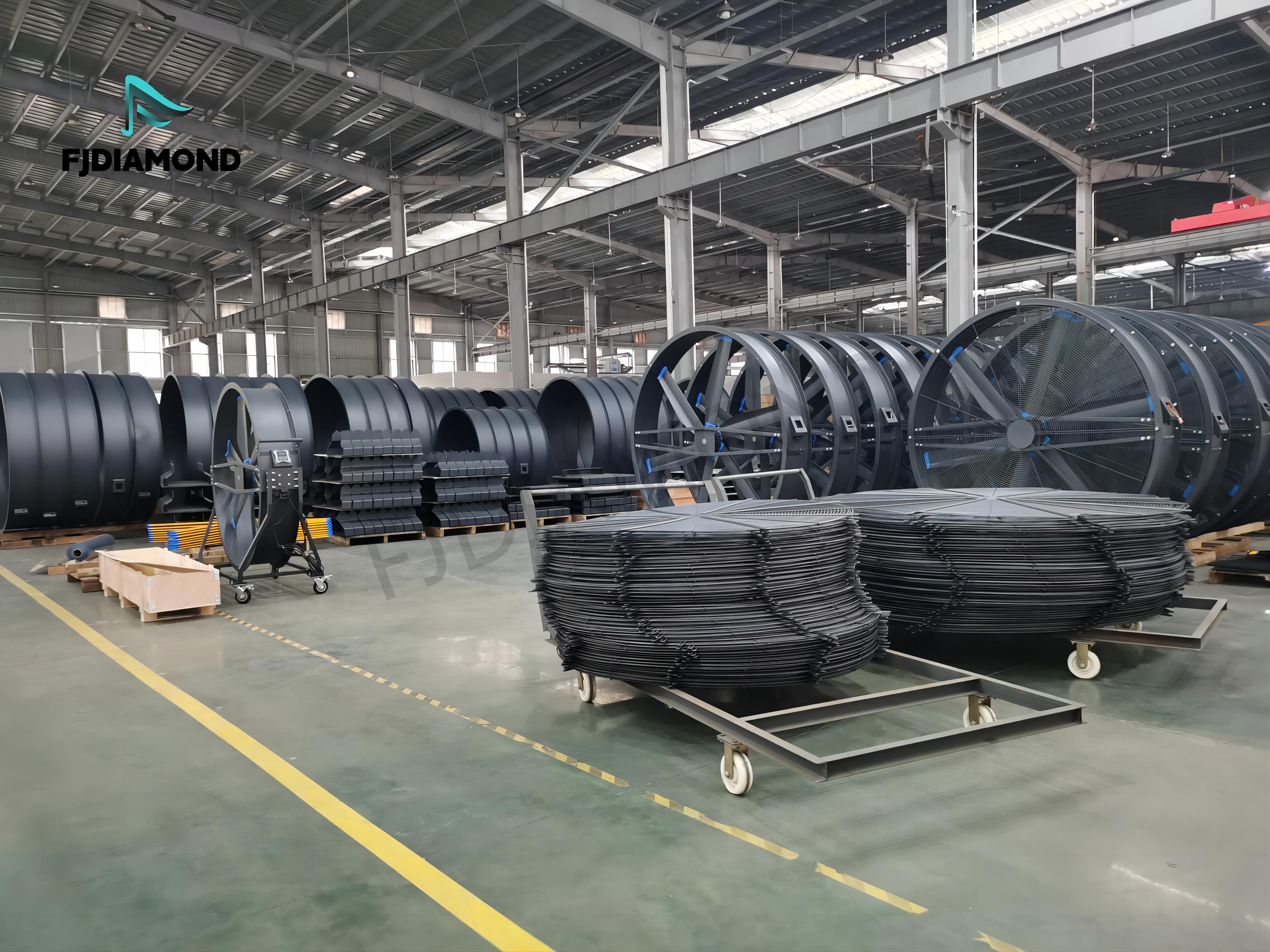

Fujian Diamond Electrical and Mechanical Equipment Co.,Ltd, we professionally focus on the manufacturing and sale of HVLS FAN and axial fans, such as: Industrial ceiling fan , Commercial ceiling fan , big movable fan,exhaust fan .
Our products and systems enable your building to perform better; save on heating, cooling, mechanical operating costs and provide a healthier environment for the occupants of the structure. Main markets are USA , Canada, The Philippines, Malaysia, India,Thailand,etc.
Pre-sales service
* Inquiry and consulting support.
* Sample testing suppoting
* View our factory
After-sales service
* Training how to install and use the fans
* Technical supporting video
Professional supplier, have factory.Provide Ventilation Solution.
Provide Great fans at Great prices.
100% test before delivery to ensure product quality.
100% Payment Protection.
Shipping Assistance.
After-sale Service.
In addition, we supply certificates for customers, to help you save cost and tariff, such as :
Form E, Form F, Form P…… etc
Are you seeking for ventilation solutions to save cost or keen to distribute our products?Welcome feel free contact us .
FJDIAMOND
Introducing the 220V 80-Inch Quiet Pedestal Fan with 2000mm Aluminum Stand Movable Floor Fan for Gyms Restaurants Farms Manufacturing Plants, the ultimate solution to your ventilation needs. with a powerful motor and efficient fan blades, this product promises to keep your space cool and comfortable, no matter how hot it gets.
Designed to generally meet your needs whether you're working out at the gym, enjoying dinner at a restaurant, maintaining crops during the farm, or owning a manufacturing facility. Measuring FJDIAMOND 80 inches in height and having an aluminum is sturdy, it can be effortlessly moved in one location to another, which makes it incredibly versatile and practical.
Both powerful and peaceful, as a result of its engineering is advanced level and components. Operates at a reduced decibel level, making sure it won't disrupt conversations, workouts, or other activities despite its big size and impressive output.
Energy efficient. By having a design is intelligent maximizes airflow while minimizing power consumption, it is a great investment for anybody trying to save on power costs. It's built to last, with a durable construction that can withstand tough conditions and use is frequent.
A breeze to operate with easy-to-use controls and a user-friendly interface. It to oscillate or stay stationary, adjust the speed or direction, or set a timer, it is all within reach whether you require.
Does not disappoint for people who destination a premium on aesthetics. Its sleek design and look are modern it a stylish addition to virtually any space, enhancing its appearance and functionality.
Order the FJDIAMOND 220V 80-Inch Quiet Pedestal Fan with 2000mm Aluminum Stand Movable Floor Fan for Gyms Restaurants Farms Manufacturing Plants today and experience the benefits of the best fan on the market.
