Products Description

 Superior airflow distribution- FJDA Large ceiling fan

 Our FJDA series smart permanent magnet large ceiling fan is a new product specially developed for improving the comfort of the working environment. Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.
Widely used in industrial plants, logistic ware-housing, waiting room, exhibition hall and so on..

Samples are welcome !
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan manufacture




Permanent Magnet Motor Ceiling Fan VS Gear Box Variable Speed Ceiling Fan
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan supplier
A. Permanent magnet synchronous high temper- ature     resistant outer rotor motor,super energy efficient.
B.  Small size and light weight C. Low noise D.  Simple structure E.  Frequency modulation width (0~50HZ) F.  Direct drive motor maintenance free G. No running hazard
A. The use of asynchronous ordinary motor + gear
    box consumes a lot of energy.
B. Large and heavy
C. Loud noise
D. Complex structure
E. FM narrow (25~50HZ)
F. Need frequent daily maintenance (change seals,
   add gearbox oil)
G.There are hidden dangers such as gearbox leakage

Technical Data

Blade sizes of 10 feet (3 m) to 24 feet (7.4m) propel air effectively through extra-large spaces.
Model
FJDA-3
FJDA-3.7
FJDA-4.3
FJDA-5.0
FJDA-6.1
FJDA-6.7
FJDA-7.3
FJDA-6.7
FJDA-7.3








Diameter
3m
10ft
3.7m
12ft
4.3m
14ft
5m
16ft
6.1m
20ft
6.7m
22ft
7.3m
24ft
6.7m
22ft
7.3m
24ft








Power
0.37kw
0.37kw
0.75kw
0.75kw
1.1kw
1.1kw
1.1kw
1.5kw
1.5kw








Voltage
220V-240V / 380V-460V








Frequency
50Hz/60Hz








Air Volume
4000
m³/min
5000
m³/min
7000
m³/min
10000
m³/min
11500
m³/min
12000
m³/min
13000
m³/min
14000
m³/min
15500
m³/min








Speed
≤120rpm
≤100rpm
≤90rpm
≤80rpm
≤65rpm
≤60rpm
≤55rpm
≤65rpm
≤60rpm








Blades
5pcs



6pcs





Blades width
180mm
180mm
180mm
180mm
180mm
180mm
180mm
200mm
200mm








Noise
38dB








Weight
45kg
49kg
58kg
62kg
99kg
103kg
107kg
109kg
113kg








Coverage size
8-12m
9-14m
12-18m
12-20m
20-25m
20-28m
20-28m
20-35m
20-35m








Effective area
150㎡
230㎡
256㎡
300㎡
600㎡
650㎡
700㎡
750㎡
850㎡








Above ground
4-5m
4-5m
4-6m
5-6.5m
8-10m
7-12m
6-9m
8-14m
8-17m








Protection class
IP55
IP55
IP55
IP55
IP55
IP55
IP55
IP55
IP55








Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan details

Main Features

1) 10 to 24ft in diameter
2) Pushing air for areas from 250 to 1700 sq. meter
3) Slower velocity for far-reaching airflow
4) More output,less horsepower.
5) Easy install in just a few steps.
6) Lighter,more efficient,easier to maintain than other industrial fans.
7) Bearings are requiring less maintenance for a longer life.
8) Insurance, each sold ceiling fan has $150,000 sum insured
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan manufacture

Details Images
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan details
FAN Parts

Name: Direct Drive Motor System
The new self-developed external rotor motor with large torque and permanent magnet synchronization replaces the traditional motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.
Aluminium alloy material is adopted in many parts to realize the lightweight design.
FAN Parts
Name: Smart control system
The control system adopts the closed design of IP66, which is dustproof, waterproof, moisture-proof and can withstand high
temperature indoor and outdoor harsh environment.
The system is no position vector control,anti-electromagnetic interference, anti-radiation, small size, lightweight, beautiful appearance.
The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan details
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan details
FAN Parts
Name: Fan blade
It is made of aluminium and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness, lightweight, long life and safe operation.
The fan blade surface is treated with T5+ bright surface oxidation treatment, which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.
Energy saving tail.

Five Levels Of Security Guarantee

Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan factory
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan manufacture
Motor bracket is integrated to prevent any parts from falling off
and ensure the safety of the whole structure.
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan details
Anti-off-plate break-off protection structure design ensures the safety
of the ceiling fan.
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan supplier
Aluminum magnesium alloy tensile blade, internal reinforcement structure, strength, toughness, to ensure the safety of the blade.
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan factory
Aluminium-magnesium alloy tensile blade, internal reinforcement structure, strength, toughness, to ensure the safety of the blade.
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan factory
Automatic power off protection, to ensure that the blade accidental tough, timely safety shutdown.

Long Warranty


We always provide customers with high-quality products and excellent after-sales service.
Permanent magnet motor warranty period of 3 Years
The controller warranty period of 18 Months .

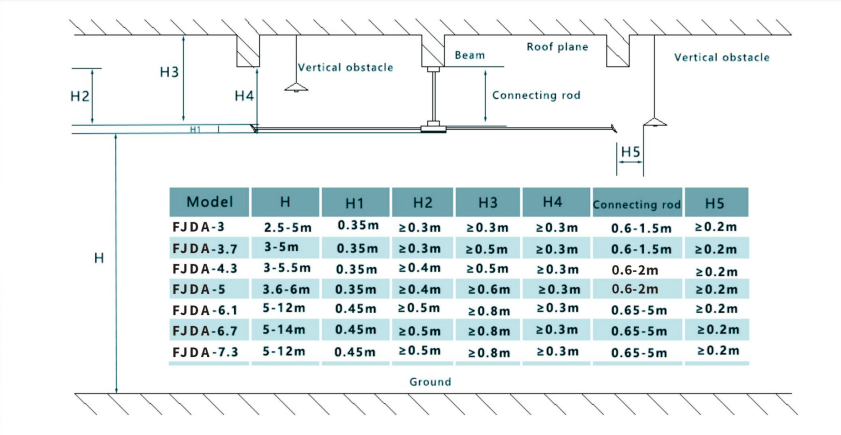

Installation Instruction
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan factory


Multiple installation modes

H-type steel,I-type steel,steel mixed square beam, ball column type,etc.
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan details

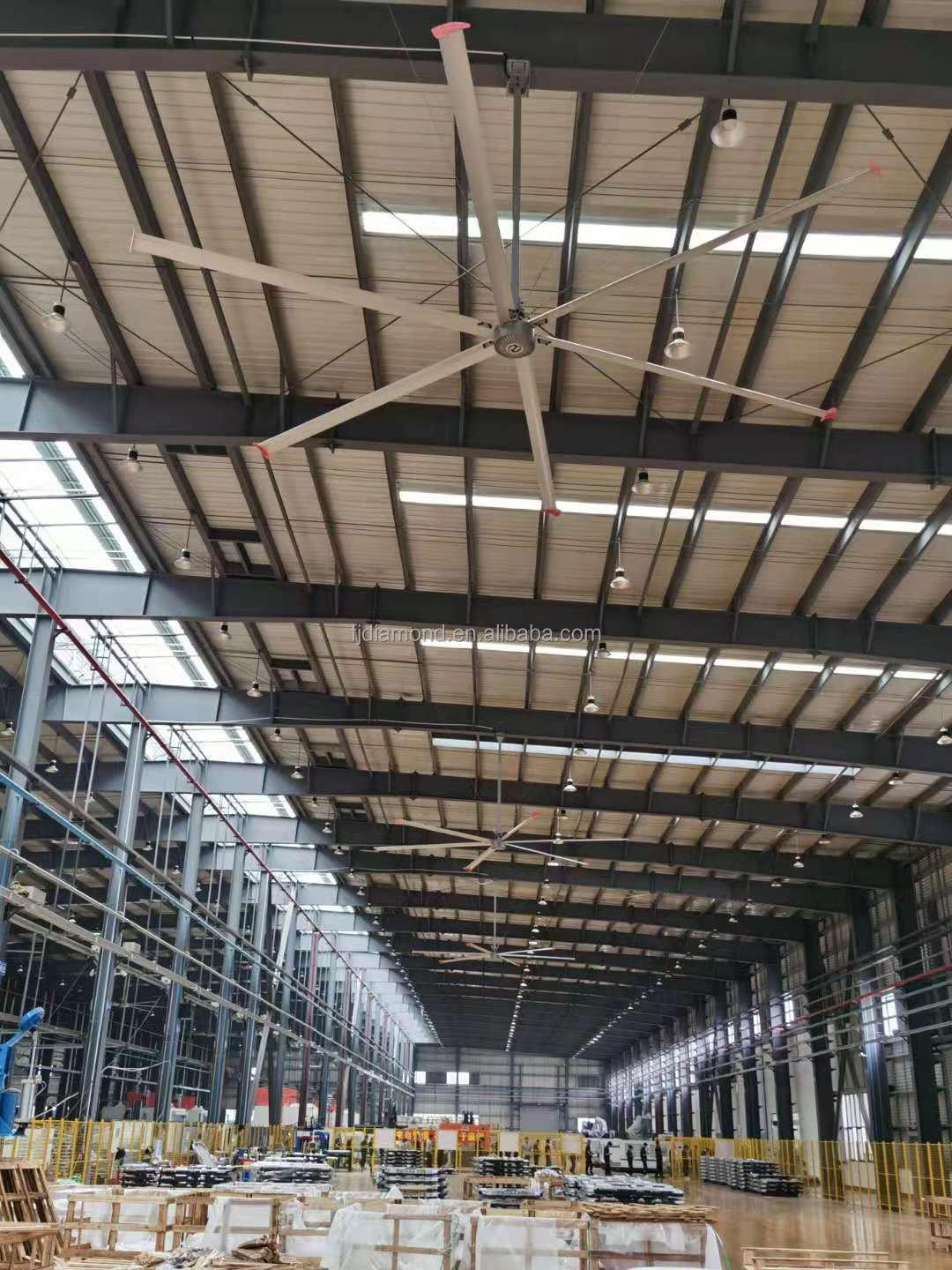

Application Case
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan factory
Super-Large Plant
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan manufacture
Commercial area
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan supplier
Animal Husbandry
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan details
Large-scale public places
Product packaging
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan details
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan details
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan manufacture
Our Factory
For more than ten years, the company focuses on the research, development and production of the high-temperature
motor,high-temperature fan and permanent magnet variable frequency ceiling fan, Strict control of production technology, to create quality.
The company has passed the standard acceptance of safety standardization; ISO9001:2008 quality management system certification, ISO14001:2015 environmental quality system certification. It has obtained the national production license for industrial products and the pollution discharge certificate of Fujian province. Products through CCSAus certificate, CCC certification, European CE certificate, fire safety certificate, best-selling national and overseas markets.
The company has owned 16 utility model patents and appearance patents. It was awarded"2017 China agricultural machinery industry annual parts quality award".
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan details
Why Choose Us
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan details
Professional supplier, have factory.Provide Ventilation Solution.
    Provide Great fans at Great prices.
    100% test before delivery to ensure product quality.
    100% Payment Protection.
    Shipping Assistance.
    After-sale Service.

In addition, we supply certificates for  customers, to help you save cost and tariff, such as :
Form E, Form F, Form P , FTA…… etc

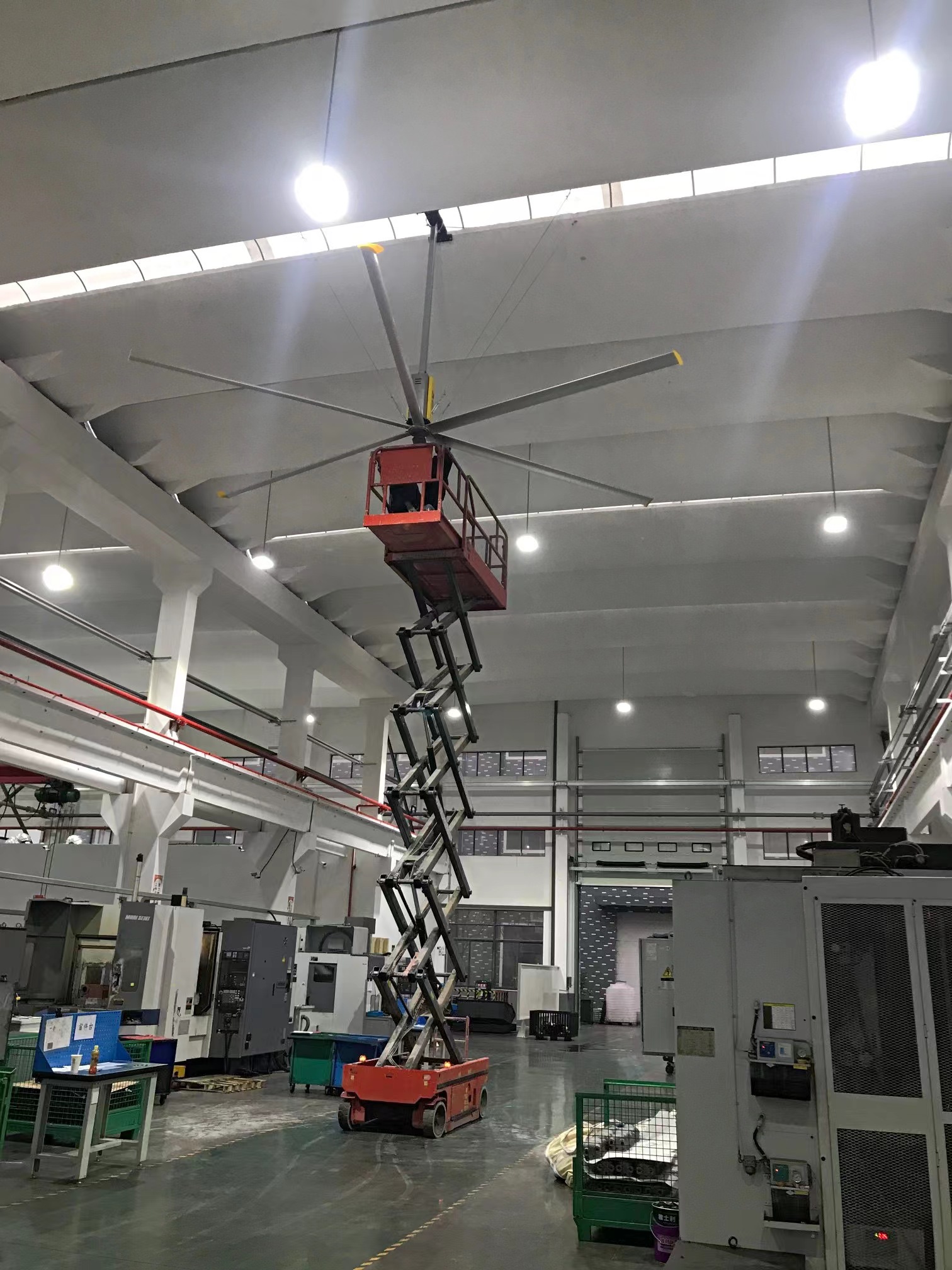

Customer Photos
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan factory
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan manufacture
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan supplier
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan factory
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan factory
Church fan  24ft HVLS 7.3m Electric Large Industrial Ceiling Fans big Ventilation fan factory
Are you seeking for ventilation solutions to save cost or keen to distribute our products?
Welcome feel free contact us .

Searching for an effective and industrial ceiling fan to always keep your church awesome? Look no more compared to FJDIAMOND's 24ft HVLS 7.3m Electric Large Industrial Ceiling Fan. Created particularly for big areas such as churches, including a wingspan is 24-foot efficient electric motor that might stream sky throughout also the biggest sanctuaries. However, in spite of its own dimension is outstanding fan is remarkably energy-efficient, using simply a portion connected with the electrical power needed through smaller sized fans to accomplish the exact very same outcomes. Why select a Church fan coming from FJDIAMOND? For simply one, our years of proficiency on the market have enabled our team to style a fan that really satisfies the desires of our customers.


Our team comprehend the distinct difficulties of maintaining an area is large and well-ventilated, and we have utilized that understanding to craft an item that provides outstanding efficiency each time. We're devoted to utilizing just the products which could be first-rate our fans. Each element is created coming from resilient, enduring products that can withstand the deterioration of constant use. And along with routine treatment and upkeep, your FJDIAMOND Church fan remains to carry out at its own very most easily helpful for years to find. The genuine examination is its own efficiency.


And because globe, this truly radiates. Its own effective electric motor can provide a stable flow of awesome sky throughout the whole chancel; therefore, you can leave behind responsible for locations and sky is stagnant. And because of its own energy-efficient style, you will not have to stress over an electrical power is high at the surface connected with the thirty times. Begin delighting in the advantages of better ventilation and a much more comfy, welcoming chancel through purchasing your FJDIAMOND 24ft HVLS 7.3m Electric Large Industrial Ceiling today.
